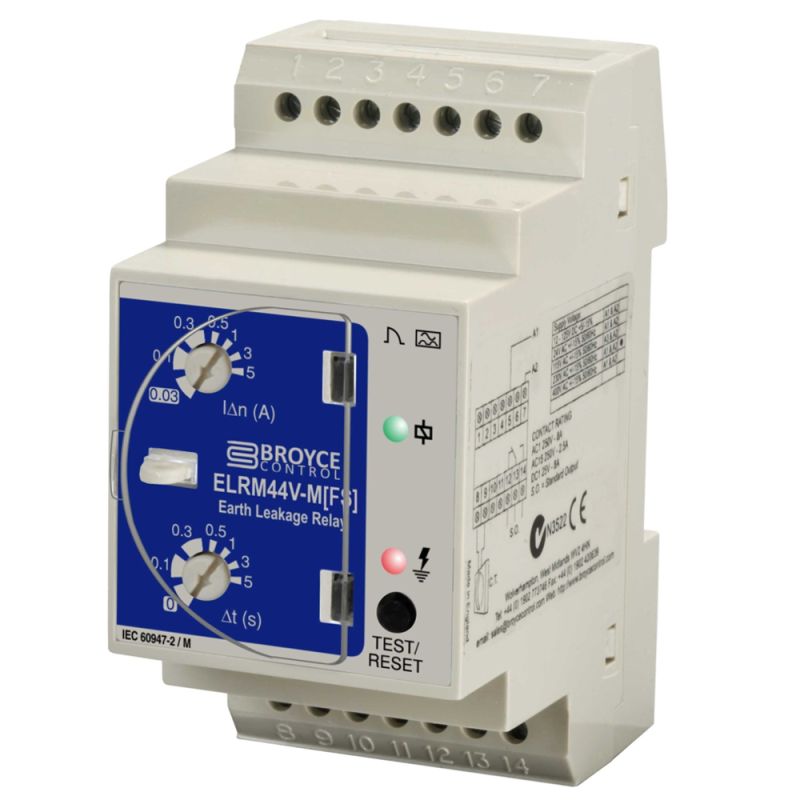

ELRM44V-M[FS]

  • Type A – Earth Leakage Relay
  • Selectable Trip level (0.03 – 5A) and Time delay (0 – 5s)
  • Relay de-energises on trip operation
  • Isolated Auxiliary supply
  • 1 x SPDT Relay output
  • 44mm wide, DIN Rail mount

A compact fail-safe Type A earth leakage relay for use with an external BZCT toroid, providing true RMS detection of AC and pulsating DC residual currents. Its output relay is normally energised and de-energises on trip or loss of supply, while adjustable sensitivity and time delay allow the protection to be matched to the installation.

  • Monitoring function: Earth leakage
  • Trip level: 0.03 – 5A
  • Time delay: 0 – 5s
  • Output: 1 x SPDT 8A
  • Dimensions(mm): W:44 x H:85 x D:63.5
  • Product standards: IEC 60947-2 Annex M and IEC 60755

Please note that this product requires an external toroid (CBCT) that should be also specified when ordering. Click here to view toroid options.

Distributors Stock Code Link
RS Components 842-569 Go to product

Alternative product:

Icon: switch product

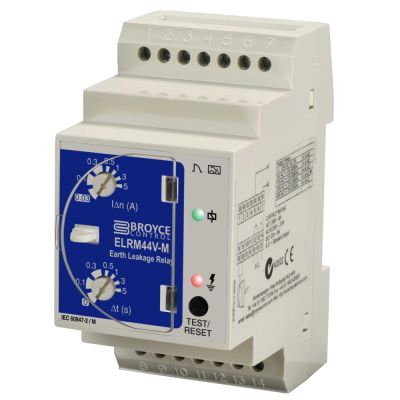

ELRM44V-M
  • Type A – Earth Leakage Relay
  • Selectable Trip level (0.03 – 5A) and Time delay (0 – 5s)
  • Relay energises on trip operation
  • Isolated Auxiliary supply
  • 1 x SPDT Relay output
  • 44mm wide, DIN Rail mount
