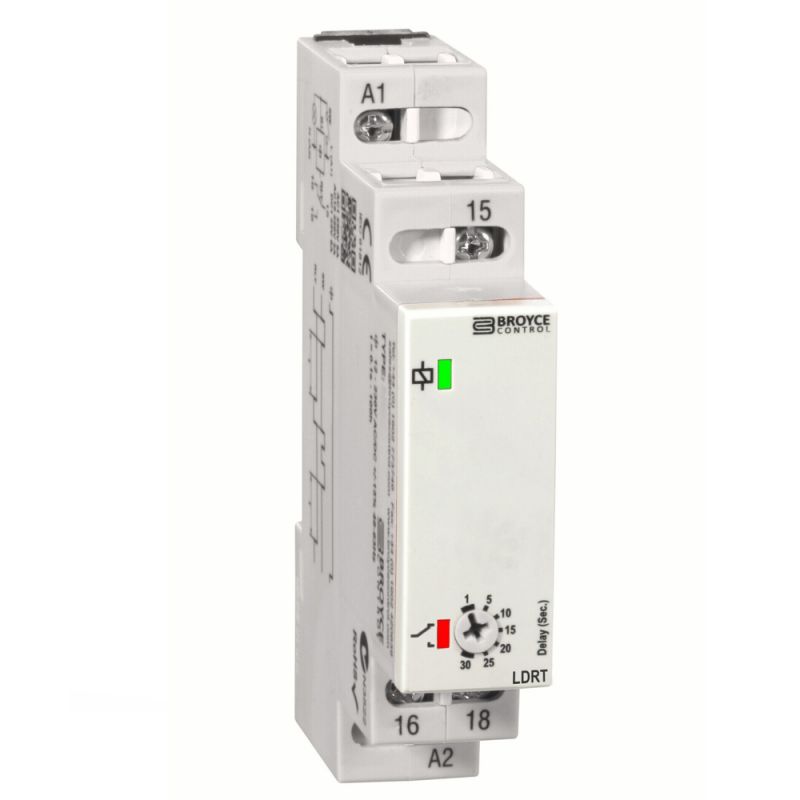

LDRT

  • Mains Restoration/Brown Out Timer – Delay On
  • Single voltage
  • Single time range
  • SPDT Relay output
  • 17.5mm wide, DIN Rail mount

When power is applied, the output relay remains de-energised for the set time delay period. After the delay has elapsed, the relay energises. If the supply voltage drops below the fixed threshold for greater than the reset time, the relay will de-energise and timing will recommence as soon as the voltage increases above the threshold again.

  • Timing function: Delay On
  • Trip level: 80% of Un
  • Time delay: 2 – 60s
  • Reset time: 100ms
  • Output: SPDT 8A @ 250V (AC1)
  • Dimensions(mm): W:17.5 x H:89 x D:66.5

Supply voltage options*:
115VAC (Order Code: 99-2002)
230VAC (Order Code: 99-2003)

* To be specified when ordering.
