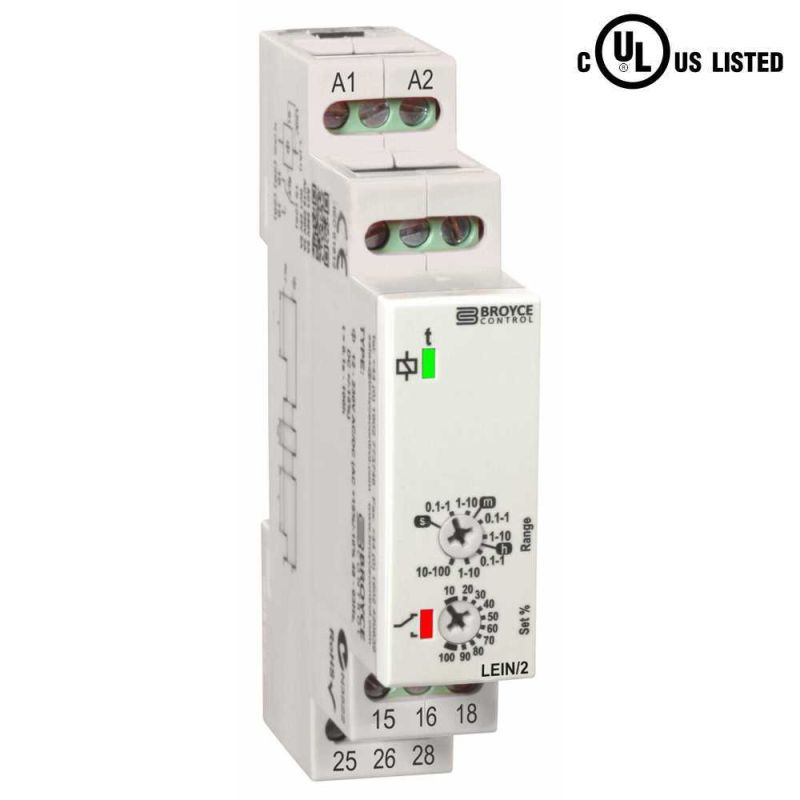

LEIN/2 Interval Timer Relay

  • Interval
  • Multi-voltage (12 – 230VAC/DC)
  • Multi-time range (0.1s – 100h)
  • DPDT Relay output
  • 17.5mm wide, DIN Rail mount
  • UL Listed

When power is applied, the output relay energises for the set time delay period. After the delay has elapsed, the relay de-energises. Power must be removed and re-applied to restart the function over again.

  • Timing function: Interval
  • Supply voltage:  12 – 230VAC/DC +/-15% (-10% if AC) (Order Code: 99-2108)
  • Time delay: 0.1s – 100h
  • Output: DPDT 8A @ 250V (AC1)
  • Dimensions(mm): W:17.5 x H:89 x D:66.5
  • Product standard(s): IEC 61812

Typical applications include:

  • Dispensing and filling equipment
  • Machine lubrication systems
  • Industrial test fixtures
  • Process flushing equipment

Key benefits:

  • Limits each commanded operating period — The output energises when power is applied and releases after the selected interval.
  • Coordinates two timed circuits — The DPDT relay provides two changeover poles that operate together throughout the interval.
  • Avoids continuous automatic repetition — The timing sequence runs once and requires power to be removed and reapplied before restarting.
  • Fits different process durations — Selectable time ranges and fine adjustment let the interval suit short pulses or longer operating periods.

Alternative product:

Icon: switch product
LEIN Interval Timer Relay
  • Interval
  • Multi-voltage (12 – 230VAC/DC)
  • Multi-time range (0.1s – 100h)
  • SPDT Relay output
  • 17.5mm wide, DIN Rail mount
  • UL Listed
