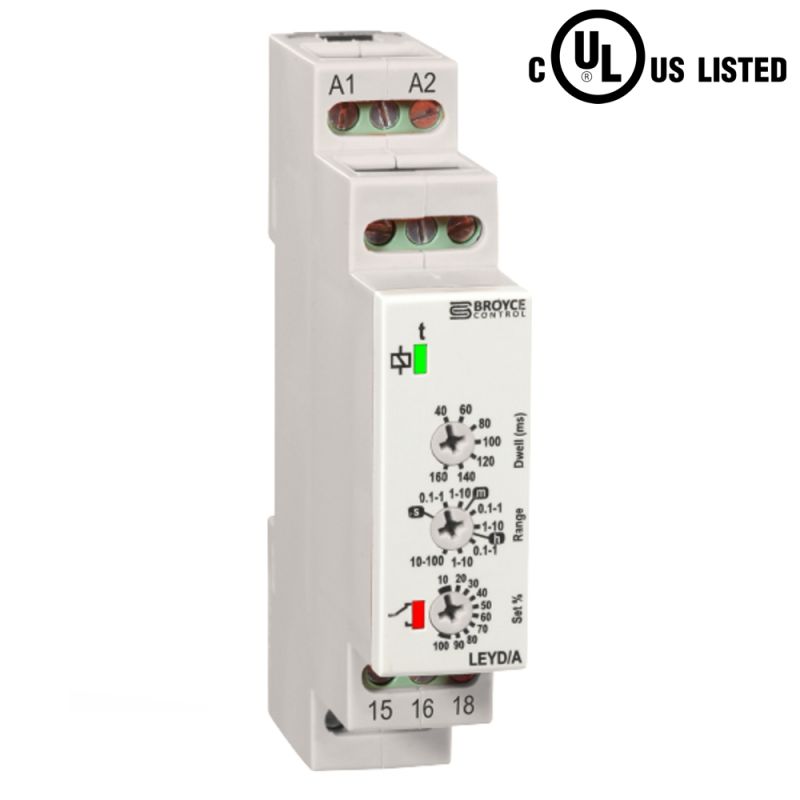

LEYD/A

  • Star/Delta Start
  • Selectable Dwell times (7)
  • Multi-voltage (12 – 230VAC/DC)
  • Multi-time range (0.1s – 100h)
  • SPDT Relay output
  • 17.5mm wide, DIN Rail mount
  • UL Listed

When power is applied, the output relay remains de-energised for the set time delay period. After the delay has elapsed, the contacts “break” for the set Dwell time, then changeover to the energised state. Power must be removed and re-applied to restart the function over again.

  • Timing function: Star/Delta Start
  • Supply voltage:  12 – 230VAC/DC +/-15% (-10% if AC) (Order Code: 99-2013)
  • Time delay: 0.1s – 100h
  • Dwell time:  40, 60, 80, 100, 120, 140, 160ms
  • Output: SPDT 6A @ 250V (AC1)
  • Dimensions(mm): W:17.5 x H:89 x D:66.5
  • Product standard(s): IEC 61812
