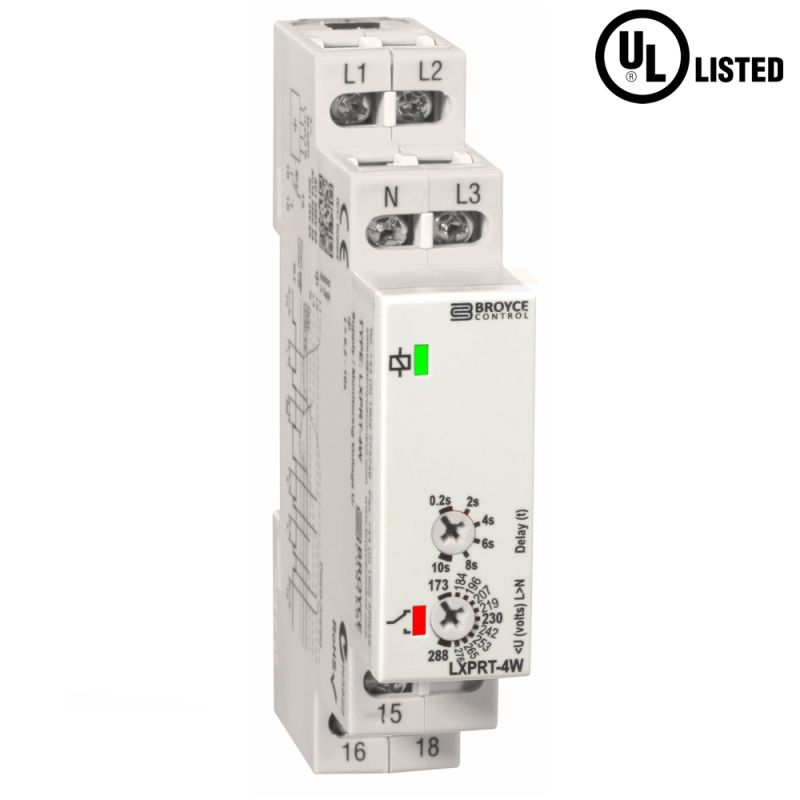

LXPRT-4W

  • Under voltage monitoring
  • Monitors own three phase, 4-wire supply
  • Detects incorrect phase sequence, phase and neutral loss
  • Adjustable Trip level and Time delay
  • SPDT Relay output
  • 17.5mm wide, DIN Rail mount
  • UL Listed

The product monitors it’s own three-phase supply and for the output relay to energise, all phases (and neutral) must be present, the phase sequence correct and the phase to neutral voltages above the set trip level. If any of these conditions are not met, the relay will de-energise.

  • Monitoring function: Under voltage
  • Monitored supply voltage: 230V (400V) AC (Order Code: 99-4104)
  • Under trip level: 173 – 288V
  • Hysteresis: ≈2%
  • Time delay: 0.2 – 10s
  • Output: SPDT 8A @ 250V (AC1)
  • Dimensions (mm): W:17.5 x H:89 x D:66.5
Distributors Stock Code Link
RS Components 8505389 (230VAC(400VAC)) Go to product
Farnell 2677806 (230VAC(400VAC)) Go to product

Alternative product:

Icon: switch product
LPRT/2
  • Under voltage monitoring
  • Selectable nominals for popular 3-wire or 4-wire supply voltages
  • Detects incorrect phase sequence, phase and neutral loss
  • Adjustable Trip level and Time delay
  • 2 x SPDT Relay output
  • 17.5mm wide, DIN Rail mount
  • UL Listed
View
VIDEO HERE
Download datasheet
