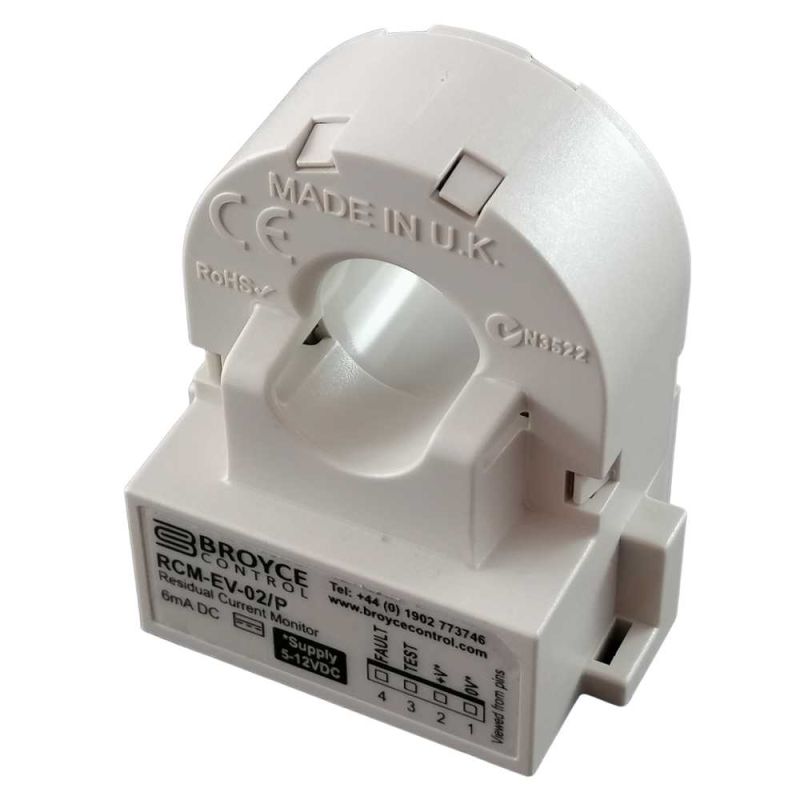

RCM-EV-02/P Residual Current Monitoring Device

  • PCB Mounting
  • Compliant with IEC 62955
  • Fixed 6mA DC trip level
  • For Mode 3 applications
  • Single switching output
  • 13.5mm cable aperture

A compact 6 mA DC residual current monitor for Mode 3 EV charging equipment. The /P variant is designed for direct PCB mounting and provides a single open-collector fault output to support controlled disconnection by the charging system.

  • Auxiliary supply: 5–12 V DC
  • Monitored circuit: 230/400 V AC, 32 A, 50/60 Hz
  • Residual current trip level: 6 mA DC (fixed)
  • Application: Mode 3 EV charging
  • Outputs: Single open-collector fault output
  • Mounting: Direct PCB mounting; underside pin header
  • Dimensions (mm): W:42.5 × H:46 × D:27
  • Product standard: IEC 62955

Alternative product:

Icon: switch product
RCM-EV-02/S Residual Current Monitoring Device
  • Direct to cable
  • Compliant with IEC 62955
  • Fixed 6mA DC trip level
  • For Mode 3 applications
  • Single switching output
  • 13.5mm cable aperture
