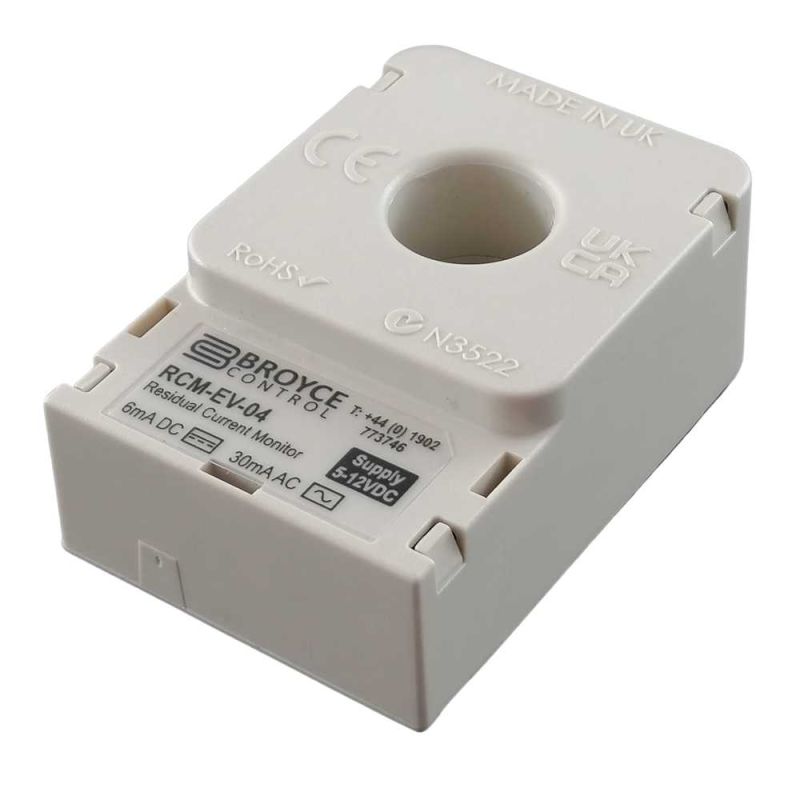

RCM-EV-04 Residual Current Monitoring Device

  • Low profile – PCB mounting
  • Compliant with IEC 62752
  • Fixed 6mA DC and 30mA AC trip levels
  • For Mode 2 and Mode 3 applications
  • Two independent switching outputs
  • 13.5mm cable aperture

A low-profile PCB-mounted residual current monitor for Mode 2 and Mode 3 EV charging equipment. It detects 6 mA smooth DC and 30 mA AC residual currents and provides separate switching outputs plus a proportional PWM output.

  • Auxiliary supply: 5–12 V DC
  • Monitored circuit: 230/400 V AC, 32 A, 50/60 Hz
  • Residual current trip level: 6 mA DC / 30 mA AC (fixed)
  • Application: Mode 2 and Mode 3 EV charging
  • Outputs: Separate 6 mA, 30 mA and error open-collector outputs; PWM output
  • Dimensions (mm): W:34 × H:20 × D:49
  • Product standard: IEC 62752
