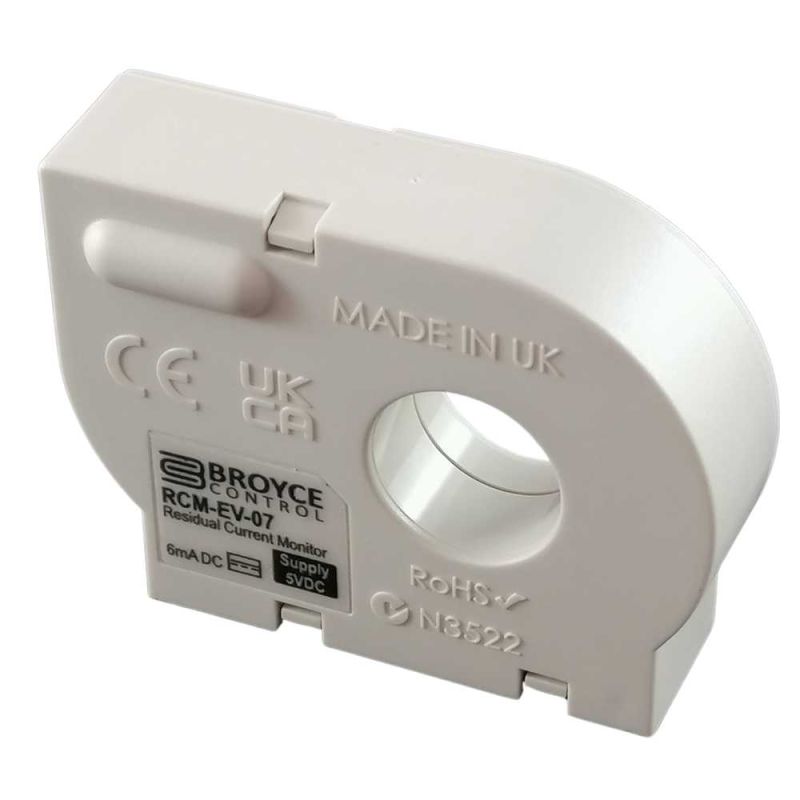

RCM-EV-07 Residual Current Monitoring Device

  • Compact design – small PCB footprint
  • Compliant with IEC 62955
  • Fixed 6mA DC trip level
  • For Mode 3 applications
  • Single switching output
  • 13.5mm cable aperture

A compact, low-height 6 mA DC residual current monitor for Mode 3 EV charging equipment. It combines a small PCB footprint with an open-collector fault output and analogue monitoring output.

  • Auxiliary supply: 5 V DC
  • Monitored circuit: 230/400 V AC, 32 A, 50/60 Hz
  • Residual current trip level: 6 mA DC (fixed)
  • Application: Mode 3 EV charging
  • Outputs: Single open-collector fault output; analogue output
  • Dimensions (mm): W:47.3 × H:35.8 × D:12.9
  • Product standard: IEC 62955
