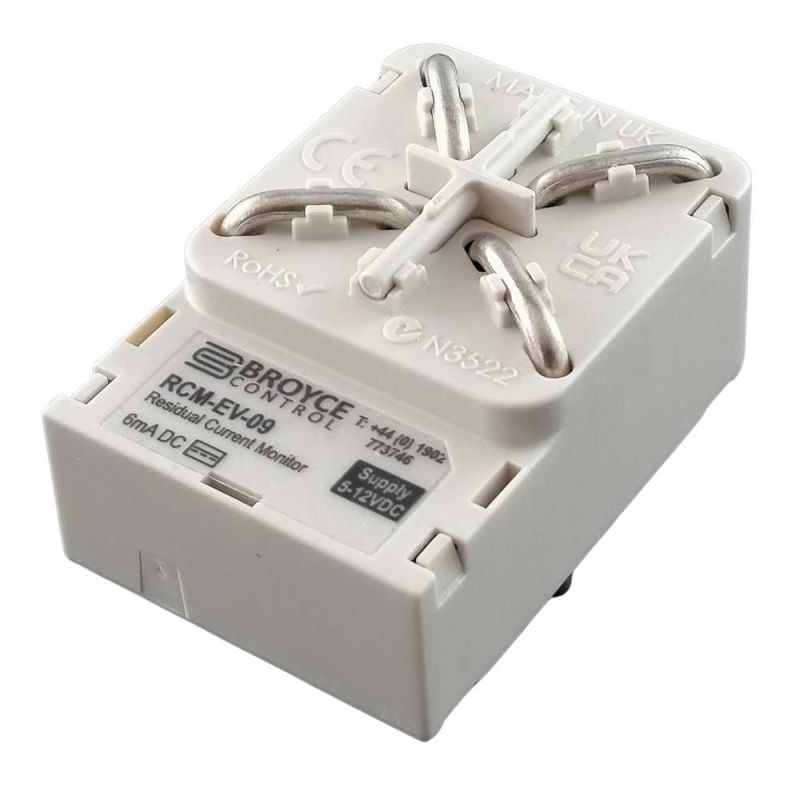

RCM-EV-09 Residual Current Monitoring Device

  • Low profile – PCB mounting with integrated primary conductors
  • Compliant with IEC 62955
  • Fixed 6mA DC trip level
  • For Mode 3 applications
  • Single switching output

A low-profile 6 mA DC residual current monitor with four integrated primary conductors for simplified installation in Mode 3 EV charging equipment. It provides fault and error switching outputs together with a proportional PWM monitoring signal.

  • Auxiliary supply: 5–12 V DC
  • Monitored circuit: 230/400 V AC, 32 A, 50/60 Hz
  • Residual current trip level: 6 mA DC (fixed)
  • Application: Mode 3 EV charging
  • Outputs: 6 mA and error open-collector outputs; PWM output
  • Dimensions(mm):  W:34 × H:30 × D:49
  • Product standard: IEC 62955
