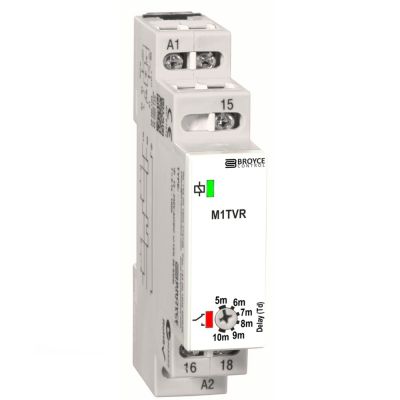

M1TVR

  • Under voltage monitoring
  • Monitors own single phase supply
  • Fixed Trip level
  • Adjustable Restart time delay
  • SPDT Relay output
  • 17.5mm wide, DIN Rail mount

When power is applied, the output relay will energise after the set time delay provided the monitored voltage is above the fixed Under voltage trip level. The relay will de-energise if the voltage decreases below the trip level.

  • Monitoring function: Under voltage
  • Monitored supply voltage: 230V AC L>N 50/60Hz (Order Code: 99-3008)
  • Under trip level: 75%
  • Hysteresis: ≈2%
  • Restart time delay: 5 – 10m
  • Output: SPDT 6A @ 250V (AC1)
  • Dimensions(mm): W:17.5 x H:89 x D:66.5
