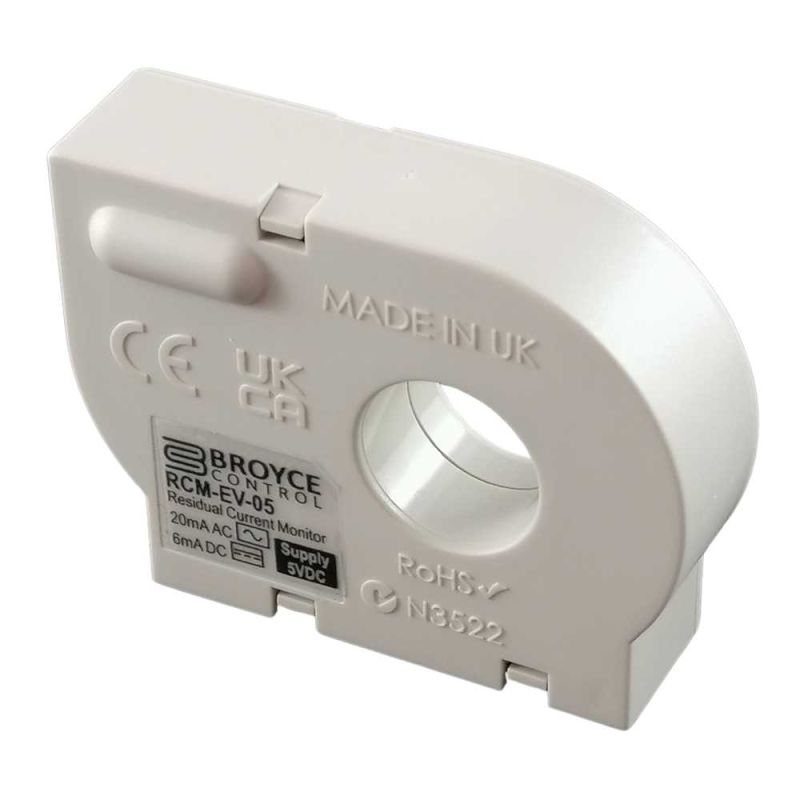

RCM-EV-05 Residual Current Monitoring Device

  • Compact design – small PCB footprint
  • Compliant with IEC 62752 & UL 2231-2
  • Fixed 6mA DC and 20mA AC trip levels
  • For Mode 2 applications
  • Two independent switching outputs
  • 13.5mm cable aperture

A compact, low-height residual current monitor for Mode 2 EV charging equipment, detecting 6 mA smooth DC and 20 mA AC residual currents. Separate fault outputs and an analogue monitoring output support integration into compact charging equipment.

  • Auxiliary supply: 5 V DC
  • Monitored circuit: 230/400 V AC, 32 A, 50/60 Hz
  • Residual current trip level: 6 mA DC / 20 mA AC (fixed)
  • Application: Mode 2 EV charging
  • Outputs: Separate 6 mA and 20 mA open-collector outputs; analogue output
  • Dimensions (mm): W:47.3 × H:35.8 × D:12.9
  • Product standards: IEC 62752, partly combined with UL 2231-2

Alternative product:

Icon: switch product
RCM-EV-07 Residual Current Monitoring Device
  • Compact design – small PCB footprint
  • Compliant with IEC 62955
  • Fixed 6mA DC trip level
  • For Mode 3 applications
  • Single switching output
  • 13.5mm cable aperture
