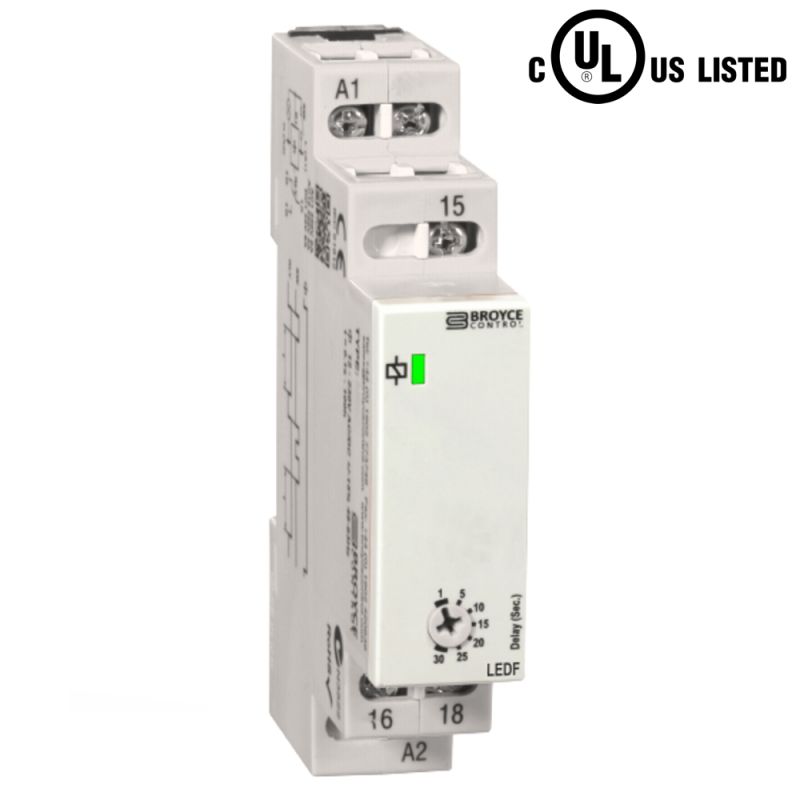

The output relay energises as soon as power is applied. When power is removed, the set time delay period commences and the relay will remain energised for this period. After the delay has elapsed, the relay de-energises. Power must be removed and re-applied to restart the function over again.
Supply voltage/time delay options*:
24VAC/DC // 110VAC:
0.5 – 10s (Order Code: 99-2005)
2 – 60s (Order Code: 99-2006)
0.5 – 10m (Order Code: 99-2004)
24VAC/DC // 230VAC:
0.5 – 10s (Order Code: 99-2008)
2 – 60s (Order Code: 99-2009)
0.5 – 10m (Order Code: 99-2007)
* To be specified when ordering
| Distributors | Stock Code | Link |
|---|---|---|
| RS Components | 8285192 (24VAC/DC//230VAC, 0.5-10s) | Go to product |
| RS Components | 8285195 (24VAC/DC//230VAC, 2-60s) | Go to product |
| RS Components | 8285199 (24VAC/DC//230VAC, 0.5-10m) | Go to product |
| RS Components | 8285186 (24VAC/DC//110VAC, 0.5-10s) | Go to product |
| RS Components | 8285189 (24VAC/DC//110VAC, 2-60s) | Go to product |
| RS Components | 8285183 (24VAC/DC//110VAC, 0.5-10m) | Go to product |
| Farnell | 2677799 (24VAC/DC//230VAC, 0.5-10s) | Go to product |
| Farnell | 2677800 (24VAC/DC//230VAC, 2-60s) | Go to product |
| Farnell | 2677801 (24VAC/DC//230VAC, 0.5-10m) | Go to product |
| Farnell | 2677796 (24VAC/DC//110VAC, 0.5-10s) | Go to product |
| Farnell | 2677797 (24VAC/DC//110VAC, 2-60s) | Go to product |
| Farnell | 2677798 (24VAC/DC//110VAC, 0.5-10m) | Go to product |
